Description

Booster+ consists of a filtration system, with a high-pressure tank and relaunch pump, all controlled by a PLC system with a touch screen. The Booster+ can be installed on board any machine tool and allows you to add up to 8 delivery lines.

Additional information

A high-pressure system, especially when working with materials such as aluminium and brass, requires an additional stage of filtration. For this reason, the Booster+ picks up the coolant from the machine tank and, by filtering it, collects it in the internal tank. Not using in-line cartridge filters or hydrocyclones, minimising downtime and offers safe filtration. The liquid is then re-launched into tanks using a pump that distributes it over several outlets. The "continuous recirculation" function also allows you to filter the coolant in the tank of the machine tool, through an overflow discharge. All this is controlled by an advanced PLC capable of controlling countless parameters in real-time and communicating with the operator via a touchscreen interface.

Description

Dragging conveyors with self-cleaning filters are particularly suitable for applications with small chips, for example, produced by the processing of brass or cast iron.

Additional information

The self-cleaning drum filter with easy access for maintenance involves filtration degrees ranging from 500 microns to 200 microns with a flow rate ranging from 200 L/1’ to 1000 L/1’.

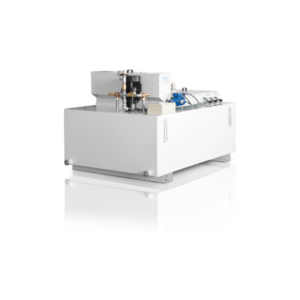

Description

Complete ecosystem in stable equilibrium. The stability of the system is guaranteed by the balance between the various components resulting from La Protec research and experience, which these products represent the synthesis.

Additional information

It is possible to configure your XL system from 300 to 400 or 500 L/min nominal with different tank capacities: from 1000 L and 2000 L of standard size up to 3000 L on extra machining.
